AgX

Transforms the colors and tonal range of an image to fit a display. Its primary innovation is an advanced color handling method that ensures a natural and film-like appearance, preventing the oversaturation artifacts common with simpler tone mapping techniques. It is derived from the display transform of the same name, used in the Blender 3D modeler by T. J. Sobotka, Eary_Chow, Sakari Kapanen and others.

Note: Modules placed before AgX in the pipeline operate in scene-referred space. Modules after AgX work in display-referred space.

🔗usage

Please take note of the following guidelines while using this module within your workflow:

only use one display transform: Never use AgX together with another display transform module (i.e. sigmoid, filmic rgb or base curve).
adjust for the mid-tones first: By default, the module preserves middle gray. Before using AgX, you should first use the exposure module to adjust the mid-tones to your liking.
usage guidelines: To help you navigate the module, some practical advice is provided after a description of the controls.

🔗module controls

The module’s controls are divided into four categories, presented in order of importance to the AgX process:

Color-related controls (the primaries)
Tone mapping controls (input range and the curve)
Post tone-mapping adjustments (“look”)

Throughout this description, references will be made to other tone mappers, namely filmic rgb and sigmoid. This is to support users already familiar with those modules; however, familiarity with those modules is not required to use AgX; it is perfectly safe to skip over such references.

Due to the high number of controls, related controls are often grouped together in collapsible sections, and the controls are distributed between either two or three tabs.

The tabs are:

settings
curve (if enabled)
primaries.

The curve tab is only visible in 3-tab mode, enabled by setting plugins/darkroom/agx/enable_curve_tab=TRUE in darktablerc. In that mode, the plot of the curve and the advanced parameters, both of which are described below, are removed from the settings tab. In 3-tab mode, they can be accessed via the dedicated curve tab, saving vertical space. When set to FALSE, all curve controls appear on the settings tab. The setting is intended to be used with lower-resolution displays, to avoid the need to scroll the module.

Below, the contents of the various tabs are listed (note that some controls may appear at different places, depending on the choice of 2 or 3-tab mode). Then, each control will be described in detail.

🔗tabs

🔗settings

The settings tab holds the most often-used controls:

the input exposure range section
the collapsible curve plot (in 2-tab mode)
the basic curve parameters
the collapsible advanced curve parameters section (in 2-tab mode)
the look section

🔗curve

Controls on the curve tab:

the collapsible curve plot (moved from the settings tab)
the basic curve parameters (also visible on the settings tab, repeated here for convenience)
the collapsible advanced curve parameters section (moved from the settings tab)

🔗primaries

This tab holds controls similar to, but more extensive than, the sigmoid module’s primaries collapsible section:

disable adjustments checkbox
preset selector
base color space selector
attenuation and rotation sliders for preprocessing before tone mapping
attenuation and rotation reversal sliders for postprocessing after tone mapping

🔗controls

🔗The primaries

These controls are the defining feature of AgX and the core of how it handles color. They determine the basic color appearance of the image before the tone mapping curve is applied. For precise definitions of the color terms used in this section, please refer to darktable’s color dimensions.

🔗a bit of background

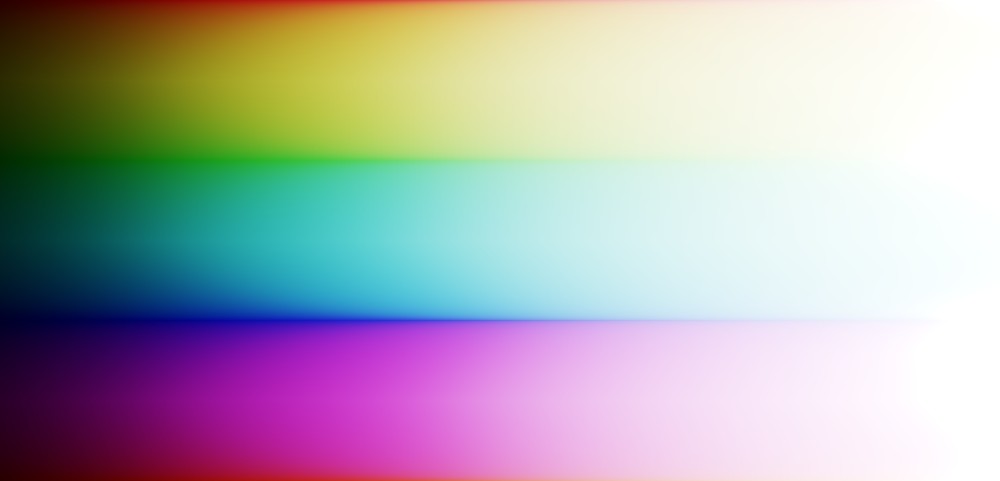

The core challenge in fitting a scene’s wide range of light into a display’s limited range is managing color across the entire tonal scale. Without tone mapping, transitions would be abrupt, and lead to color distortions:

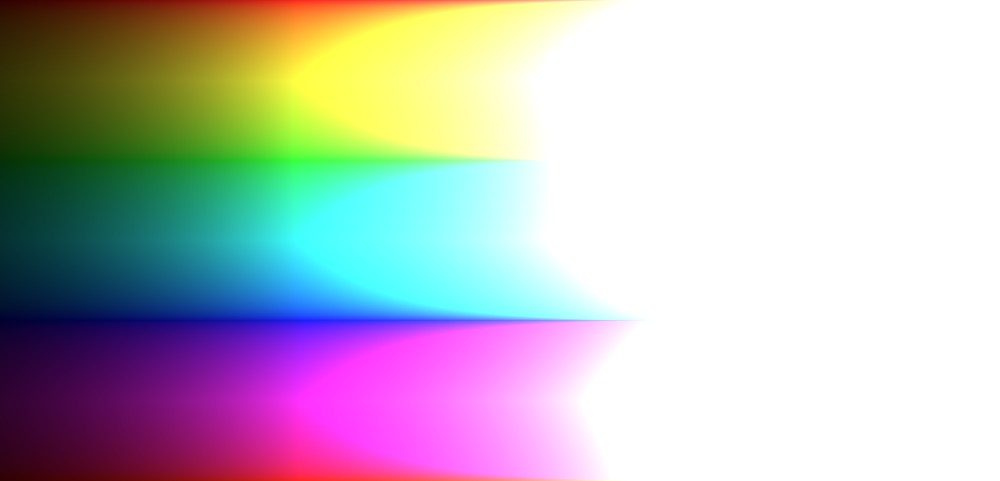

A simple per-channel curve often causes colorful objects to shift to pure, unnatural-looking primary or secondary colors as their intensity changes—an effect sometimes called the “Notorious 6”:

The primaries controls in AgX work to prevent this by building a custom color space for the tone curve. By adjusting the primaries before the curve is applied, AgX creates a more graceful “path to white,” allowing colors to desaturate and shift hue in a way that looks more natural and believable. This process influences the color rendering across the entire tonal range to create a cohesive final image:

🔗controls on the primaries tab

disable adjustments: Turns off all manipulation of primaries. It is not recommended to tick this checkbox for actual processing; it is intended as a learning tool for quick comparisons. For a starting point without adjustments, that can be fine-tuned manually, use the unmodified configuration.
reset primaries: Clicking this button reveals a pop-up menu to apply one of the built-in sets of primaries, without altering any of the other settings. Click an item to select it, or press Escape or click outside the menu to dismiss it without applying any setting.
base primaries: Defines which color space is used as the basis of the AgX processing space. The attenuation and rotation controls below are applied relative to this space. Options include common spaces like sRGB, Display P3, Adobe RGB (compatible), and Rec2020; the working space (set in the input color profile module), and the export space (set in the output color profile module). For especially problematic colors, you may find that wider spaces provide better control.

🔗before tone mapping

The controls in this group affect the operations performed before the tone mapping curve is applied.

red/green/blue attenuation: Controls the amount of desaturation applied to the primary color. This adjusts the rate of the color’s shift towards white as its intensity increases. Lower values result in a slower shift and more pronounced hue changes, at the risk of artifacts. The saturation of all colors will be reduced, regardless of luminosity, but this can be reversed for shadows and mid-tones using the purity boost sliders described below, in the section after tone mapping, the overall effect being a desaturation of highlights.
red/green/blue rotation: Rotates the hue angle of the primary color. This affects the direction of the hue shift for colors as their intensity changes. For example, rotating red can influence whether it bends towards yellow or magenta.

🔗after tone mapping

The controls in this group affect the post-processing done after tone mapping. Use them as artistic controls to help you achieve the desired final look.

reverse all: Ticking this checkbox will hide the other controls in the group, and adjust processing settings as if the master reversal sliders, discussed below, were set to 100%, the purity boost parameters to match the values of the corresponding attenuation sliders, and the reverse rotation parameters to mirror the values set with the rotation sliders. The values of the hidden sliders will be retained, but not used for processing. Unchecking the checkbox will make them visible, and their settings effective, again. The checkbox is intended to simplify the user interface (users may wish to create presets with the checkbox ticked), and for quick “what-if” checks.
set from above: Clicking the button will copy the values of the sliders from the before tone mapping section, and set the master controls to 100%, producing the same visual effect as ticking reverse all. However, this only provides a starting point: the sliders will not be hidden, and may be adjusted to taste.
master purity boost, master rotation reversal: These are multipliers that affect the individual red/green/blue controls below, allowing you to globally increase or decrease their effect.

Note The module provides built-in presets, based on Blender, and on the smooth preset of the sigmoid module. When adjusting primaries starting from those presets, you will need to take the following into account:

In Blender, the rotation of primaries is not reversed, and purity is restored using values different from those used for attenuation. Therefore, the corresponding blender-like and scene-referred default presets of AgX come with master purity boost = 100%, master rotation reversal = 0%. This means that although the per-channel rotation reversal sliders are set up for complete reversal, they have no effect; you can turn them on gradually by raising the master rotation reversal control, and, once that is no longer set to 0%, adjust the individual channel sliders according to taste.
In the sigmoid module’s smooth preset, rotations are always completely reversed, but purity is not boosted at all by default. Therefore, the corresponding AgX presets, also called smooth, set master purity boost = 0%, master rotation reversal = 100%. The per-channel purity boost sliders are set to completely reverse the attenuation, but are effectively disabled by the master slider; the per-channel rotation reversal sliders mirror the settings of the reversal slider, and are fully enabled by the master control.
You are, of course, free to create your own presets with your favourite combination of master and per-channel controls (for example, having the master reversal controls at 100% and the per-channel controls set to your preferred values).

red/green/blue purity boost: Restores color purity after the tone curve is applied. Higher values make the image look more colorful and chroma-laden, but can introduce artifacts if pushed too far. When combined with attenuation (see above), the net effect is a selective desaturation of highlights (since the purity boost does not fully recover purity in highlights, due to them being strongly desaturated by the tone mapping process).
red/green/blue reverse rotation: Reverses the initial primary rotation after the tone curve. This offers a final control over the rendered hues. This can be used to partly or fully reverse the hue shifts introduced by the corresponding rotation sliders, mostly in the shadows and mid-tones. Since the curve is applied per-channel, it is subject to the “Notorious 6” shifts, which mostly affects highlights.

🔗selective tuning for mid-tones and highlights

It is important to note that using the primaries controls, the properties of the S-curve (lower contrast in highlights), and per-channel application of the curve together make it possible to apply different adjustments to mid-tones and highlights, even though this may not be evident at the first glance.

Per-channel S-curves have the property of desaturating highlights, independently of our attenuation control. This means we can reverse the attenuation (restore saturation) for mid-tones using purity boost, but not so for highlights.

Another property of per-channel S-curves is the skewing of bright colors mentioned above: the “Notorious 6”. AgX cleverly uses this effect to exaggerate hue shifts introduced using the rotation of primaries. For example, a red primary rotated a few degrees towards green (yellow) will turn ever so slightly yellow, and this can be reversed later using the red reverse rotation slider, if desired. However, for brighter tones, the “Notorious 6” shift will skew the slightly yellow-tinted red more towards yellow, allowing us to obtain orange sunsets instead of pink ones. The reverse rotation will not recover this additional skew fully. To control how much additional skew you want to allow, use the preserve hue slider in the look section.

🔗The input exposure range

This section provides controls similar to the filmic rgb module, allowing you to set the black and white point. The selected exposure range will then be projected into the [0, 1] range using a logarithmic transformation. This means that each 1 EV stop of dynamic range corresponds to an equal distance along the curve’s horizontal axis. The mid-gray point is situated proportionally on this axis between the selected extremes. Any channel value lower than the selected black relative exposure will be treated as 0; any above the selected white relative exposure will be clipped to 1.

Color pickers are provided to quickly pick the black or white point (black and white relative exposure), or both (auto tune levels and the read exposure button, symbolized by a camera icon). Due to implementation differences, the values will be similar, but not identical, to the values filmic rgb would pick. For the pickers, but not for the “camera” button, a safety margin can be applied via the dynamic range scaling slider: contrast at the ends of the dynamic range is more easily controlled via the toe and shoulder controls described below.

The read exposure button does not analyze the contents of the image, like the pickers do. Instead, it estimates the black and white relative exposure based on the settings of the exposure module. In case there are several instances of exposure, the button will read the settings from the first enabled, unmasked instance. If all instances are masked, the first instance will be used. Using the button only makes sense if the input to AgX is actually influenced by the exposure module; that is, if the exposure module comes earlier in pipeline order (which is normally the case). This allows you to take into account any in-camera exposure compensation, in-camera highlight preservation (if supported by darktable) and manual adjustments. The mechanism is similar to that used by filmic rgb, but is not applied automatically.

The selected exposure range will then be used as the input range of a logarithmic tone mapping operation, which then provides data that is further processed by the curve.

🔗The curve

The plot of the curve can be displayed by opening the show curve collapsible section. In 2-tab mode, the plot is visible on the settings page; in 3-tab mode, it is available on the curve page. It can be a useful tool to learn about the behavior of the curve and the effect of related controls. The plot is not interactive; it simply illustrates the effect of the sliders.

The x-axis of the graph shows the selected input exposure range, measured in EV, with values relative to mid-gray; mid-gray is therefore at the 0 EV mark. The y-axis displays the linear output value, 18% indicating mid-gray. The scaling of the y-axis is not linear; horizontal grid lines help visualize the non-linearity. The degree of non-linearity is governed by a gamma value (default: 2.2). More information on the gamma is provided in the description of the advanced curve parameters.

The curve has 5 important points:

The black and white points are at the left and right edges of the graph, respectively; their final linear output values can be controlled by the target black and target white sliders (see advanced curve parameters).
the pivot is the point around which the curve is built, indicated by a dot. By default, it maps mid-gray to mid-gray. You may move this point to match your main subject using the provided picker.
toe and shoulder starting points: These define where the curve transitions from a linear section to the compressed toe (shadows) and shoulder (highlights). By default, they are set to the pivot point.

show curve: Expands or collapses the plot of the curve. It is recommended to expand this section while getting familiar with the curve, or when investigating issues like loss of detail or curve “inversion” (documented under toe power / shoulder power).

🔗basic curve parameters

This section is always available on the settings page, and in 3-tab mode, it is also available on the curve tab.

pivot relative exposure and pivot target output

The pivot is the point on the curve around which contrast is adjusted. There are two controls:

The point of the input tonal range at which contrast will be highest, controlled by pivot relative exposure.
The output value (power) of the pivot point, set via the pivot target output slider.

pivot relative exposure: sets the input value of the pivot point, in EV relative to mid-gray. Since contrast is normally highest around the pivot, this slider allows you to choose at which part of the input tonal range you want to have the most contrast. The corresponding color picker adjusts only this slider, but not pivot target output. You may be tempted to use it as a brightness control (moving the pivot towards black, without modifying its output value, will brighten the image, while moving it towards white will darken the image), but the pivot target output is better suited for that, as it directly influences brightness, without changing the point of highest contrast.

When adjusting the black/white relative exposure values, the pivot relative exposure (its distance to mid-gray) will be maintained, as long as possible. This will cause it to move along the x-axis, as the preserved quantity is the exposure value relative to mid-gray, and where that falls on the x-axis depends on the endpoints of the axis (the black and white relative exposure values). In case the pivot input would fall outside the exposure boundaries, it will be forced inside the available range.

pivot target output: sets the target output linear value (power) for the tone selected by the pivot’s input. The value is indicated on the y-axis. Note that the scale of the y-axis is not uniform, and depends on the curve y gamma, described in the section advanced curve parameters. The corresponding color picker adjusts both pivot relative exposure (setting the point of highest contrast) and pivot target output, attempting to preserve the average brightness of the selected region.

For more predictable results, it is advised to use the color pickers on uniform areas, as sudden tonal transitions in the selected area will cause the average values to change rapidly, leading to fluctuations in both pivot input and output.

contrast: Sets the slope of the curve at the pivot point. This value is scaled internally to maintain a consistent final (linear) output contrast, compensating for changes to both the dynamic range and the curve y gamma setting.
shoulder power / toe power: The word shoulder refers to the higher bend of the curve (highlights), while the toe is the lower bend. These sliders determine how gradually the contrast drops as the curve approaches black or white. Higher values result in a sharper bend, maintaining contrast for longer before a more abrupt roll-off. If the overall contrast is not sufficient to reach the black and/or white point, either or both ends of the curve may become “inverted,” rendering these controls ineffective. Should this occur, a warning icon will appear next to the affected slider(s). Hovering over the warning provides a tooltip with suggested actions, and, if the show curve section is expanded, the affected part of the curve will be highlighted in yellow. This warning may be disabled by setting plugins/darkroom/agx/enable_curve_warnings=FALSE in darktablerc.

🔗advanced curve parameters

When in 2-tab mode, these controls appear on the settings page. In 3-tab mode, they only appear on the curve tab.

shoulder start: Defines the point where the linear portion of the curve ends and the shoulder begins. Keeping the value at 0% allows the smooth transition to start at the pivot; higher values push the transition point up towards the chosen target white. This may result in hard clipping, which can lead to a loss of detail in the highlights.
target white: The upper bound that the curve converges to. This can be used to limit the maximum output luminance.
toe start: Defines the point where the linear portion of the curve ends and the toe begins. Keeping the value at 0% allows the smooth transition to start at the pivot; higher values push the transition point down towards the chosen target black. This may result in hard clipping, which can lead to a loss of detail in the shadows.
target black: The lower bound that the curve converges to. This can be used to create a faded analog look, similar to the lift control in the look section or the global offset in color balance rgb.
keep the pivot on the diagonal: Automatically adjusts curve y gamma in an attempt to ensure the curve remains S-shaped, as long as the contrast setting is high enough. It works much like auto adjust hardness in filmic rgb. While the checkbox is ticked, curve y gamma cannot be adjusted manually, and is hidden.
curve y gamma: Shifts the representation of the pivot along the y-axis without changing its output luminance. This is an internal parameter of the algorithm and does not need to match your display’s gamma. Its purpose is mainly to enable you to keep the S-shape of the curve, thereby ensuring the shoulder and toe power controls remain effective. Manual adjustments are disabled while keep the pivot on the diagonal is enabled.

🔗The look section

These controls allow post-processing after the tone mapping operation. Since they are applied after the tone mapping, they are display-referred operations, and can result in clipping. Use them carefully.

By default, the look controls are placed inside a collapsible section. If you desire to keep them visible at all times, you can set plugins/darkroom/agx/look_always_visible=TRUE in darktablerc.

slope: Multiplies the output values by this factor. Black (a value of 0) is not affected. Values above 1 brighten the image and increase contrast; those below darken the image and reduce contrast.
lift: Shifts values up or down. Only blacks are fully affected, with the effect gradually reduced for brighter tones; whites are not affected if slope is at its default value of 1. Negative values crush shadows; positive values can produce a faded look.
brightness: Applies a power function (gamma adjustment) to the image. The black and white points are not affected. Values above 1 will raise the mid-tones, opening up shadows; those below will darken the mid-tones and compress shadows.
saturation: Controls color intensity by adjusting the image’s chroma. For a precise definition of chroma vs. saturation, please see darktable’s color dimensions. Zero turns the image black-and-white.
preserve hue: The tone mapping curve, being a per-channel curve, introduces color shifts, with color tending towards the primary (red, green and blue) and secondary (yellow, cyan and magenta) colors in the highlights. At a value of 0%, these color shifts are kept. By raising this slider, the input hues (those before the tone curve) can be partially or fully restored. Note that the input hues themselves are affected by the primaries manipulations performed before tone mapping, and the final hues are affected by the primaries manipulations applied after tone mapping. For a detailed order of the operations involved in processing, see internal processing details below.

🔗guidelines

Note that unless high quality processing is enabled, the effect of adjusting the primaries cannot be judged properly, especially with highly saturated colors and narrow-spectrum light sources like LEDs.

🔗recommended workflow

Set overall exposure for the mid-tones using the exposure module. Alternatively, use contrast and toe / shoulder power to fill the output tonal range.
If darktable is set to apply a scene-referred workflow, the module will apply reasonable defaults. In other cases (for example, when using the legacy display-referred workflow or if the workflow preference is set to “none”), manually select the preset blender-like|base or smooth|base for best results. The punchy presets are more contrasty and colorful.
The provided presets, except for unmodified base primaries, provide carefully tuned primaries. When starting out, it is best to rely on those settings. Adjusting them, based on individual taste and/or special lighting conditions (e.g. LED lights, stage lighting) is part of a more advanced workflow.
Use the auto tune levels picker to set the desired exposure range.
If desired, set the pivot on the subject using the picker next to pivot relative exposure; this ensures contrast is maximized around the selected area.
You may then move the pivot target output slider to adjust the brightness of the pivot point.
Set the contrast.
If needed, adjust toe and shoulder power to set contrast in shadows and highlights, respectively.
Finally, if desired, add “drama” by adjusting look | brightness, set overall saturation using look | saturation, and adjust colors using look | preserve hue.
Do not forget that the AgX module is just another tone mapper. As flexible as it is, it is not intended to solve all image processing tasks related to color and contrast. Continue to use darktable’s other modules that target general image editing.

🔗internal processing details

The following is a detailed description of the steps taken when processing with the AgX module. Reading this section is not required to use the module; it is provided as a reference for interested readers.

linear, scene-referred data arrives in the pipe’s working space, defined in the input color profile module (e.g. Rec 2020)
if needed, it is converted to the selected “base” space
colors that are out-of-gamut for the “base” space (RGB triplets that have any negative component in that space) are “slid” into gamut (in-gamut colors are not modified; it is possible that a previously out-of-gamut color “lands on top of” an in-gamut color). sigmoid performs a similar operation, but the method is different.
an input matrix is calculated and applied, based on the RGB attenuation and primaries rotation values: this desaturates the colors (mixing channels into each-other), and rotates the primaries. This is the same as with sigmoid.
the HSV representation is calculated from the inset+rotated RGB; the hue (H) will be used later to restore the hue according to the look / preserve hue slider.
for each component (RGB channel), the same processing steps are executed independently (but, since the desaturation (primaries attenuation) mixes channels into each-other, this means that with respect to the original color, the processing is not independent at all):
- log encoding is applied: for input x, log2(x) is calculated (x would be the value of the red, green or blue channel)
- the log value is scaled and shifted according to the selected exposure parameters, so the selected black point becomes 0, the white point 1, and the value corresponding to mid-gray (18%) ends up on the x-axis of the curve in a ratio _black relative exposure : white relative exposure (by default, 10 : 6.5, or at about 0.61)
- the curve is applied; this produces an output that is considered to be encoded according to the gamma. This can be considered as data ready to be displayed on a monitor using the specified gamma value (the gamma is only used for processing, and does not have to match the gamma of the display used for editing, or that of the output color space).
the look is applied in pure display-referred mode, like legacy editing of gamma-encoded images, similar to editing sRGB JPGs in traditional editors. Except for saturation, these are also per-channel operations:
- first the slope and the lift
- then the brightness
- finally the saturation
for each channel, the gamma-encoded data is linearized by applying linear = gamma_encoded ^ gamma (so it is scene-referred 0..1, but the encoding is linear, like always in darktable’s pipeline; mid-gray is at 0.18)
the HSV representation of the result is calculated; the resulting hue (from the H component) and the original hue are mixed together according to the preserve hue setting to produce the final hue. This does not guarantee complete preservation of color, as the “original” hue was already recorded after the input matrix, and after this mix, the output matrix (see the next step) modifies colors again.
the output matrix is applied to each channel, which:
- performs the rotation reversal (this is a difference with sigmoid: the latter always completely reverses the rotation, in AgX, reversal is up to the user)
- applies the purity boost (just like sigmoid)
- converts the result back into the pipe working space.

🔗Further Reading

For a deep dive into the theory and development behind AgX, the primary resource is the discussion thread on Blender Artists: Feedback & Development - Filmic - Baby Step to a v2.
